Dynaflex

Quadricep and hamstring leg dynamometer for PT use

IMG_9287.heic

Use Case



Load cell of leg dynamometer measures force exerted during the prone-lying hamstring and quadricep strength tests

Screen Shot 2020-12-12 at 10.45.27 AM.pn

Prone-lying Quadricep Strength Test

Screen Shot 2020-12-12 at 10.46.16 AM.pn

Prone-lying Hamstring Strength Test

Designing the Frame

​

Frame Requirements:

​

  • Angle adjustment for knee bend

  • Tibia height adjustment

  • Comfortable, responsive padded load cell

  • Impermanent, stable attachment to exam table

​

Screen Shot 2020-12-12 at 10.57.49 AM.pn

Frame Prototypes:​

​

We used larger 40mm 8020 rails and adjustments to test our initial design ideas.

​​

​

We used CAD modeling to test the weight and stability of a lighter, more compact 8020 model.

Screen Shot 2020-12-11 at 11.17.10 PM.pn

Electronics ​

​

We used a push-button load cell, HX711 amplifier, Arduino, buzzer, and LCD to make a functioning, user-friendly leg dynamometer.​​

​

Screen Shot 2020-12-12 at 11.11.24 AM.pn

​

All electronics were mounted in a 3D-printed electronics housing, with a separate 3D-printed load cell housing

​

Screen Shot 2020-12-12 at 11.16.00 AM.pn
Screen Shot 2020-12-12 at 11.10.59 AM.pn

Signage​

​

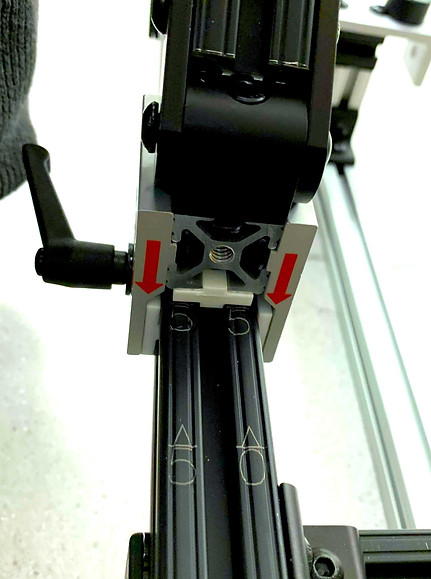

Vinyl signage and laser cut angle labels makes using Dynaflex intuitive and simple.

​

Image from iOS (24).jpg
Image from iOS (23).jpg

Final Product​

​

Screen Shot 2020-12-12 at 10.57.00 AM.pn

Continued Collaboration


We continued to work with the clients to build a larger dynamometer for their bariatric table, and to add clamps to the design for a more secure attachment to the table.​
